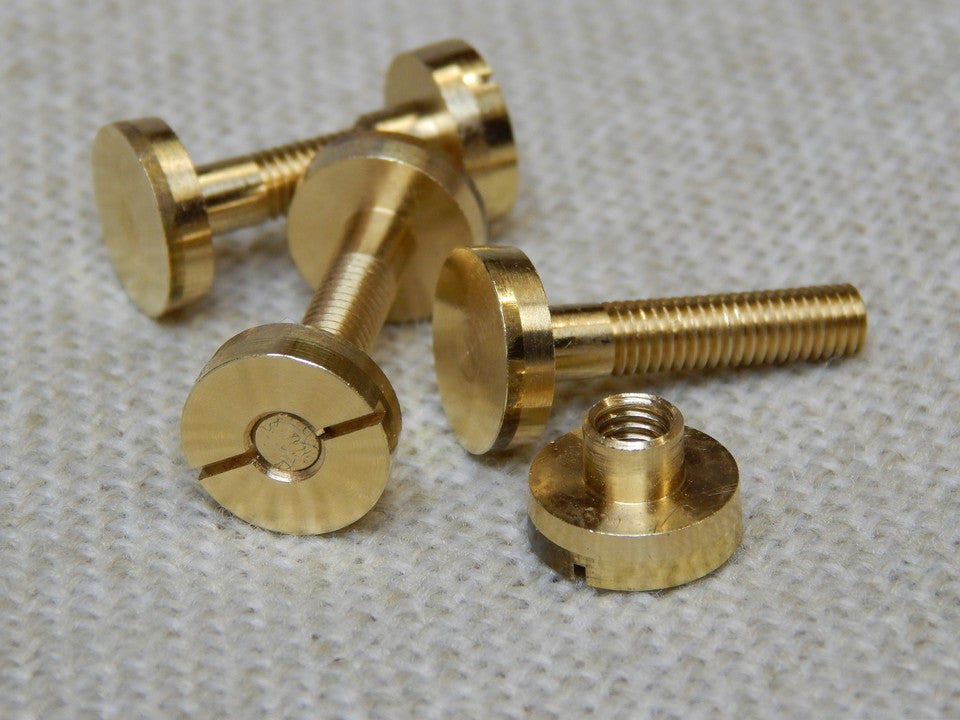

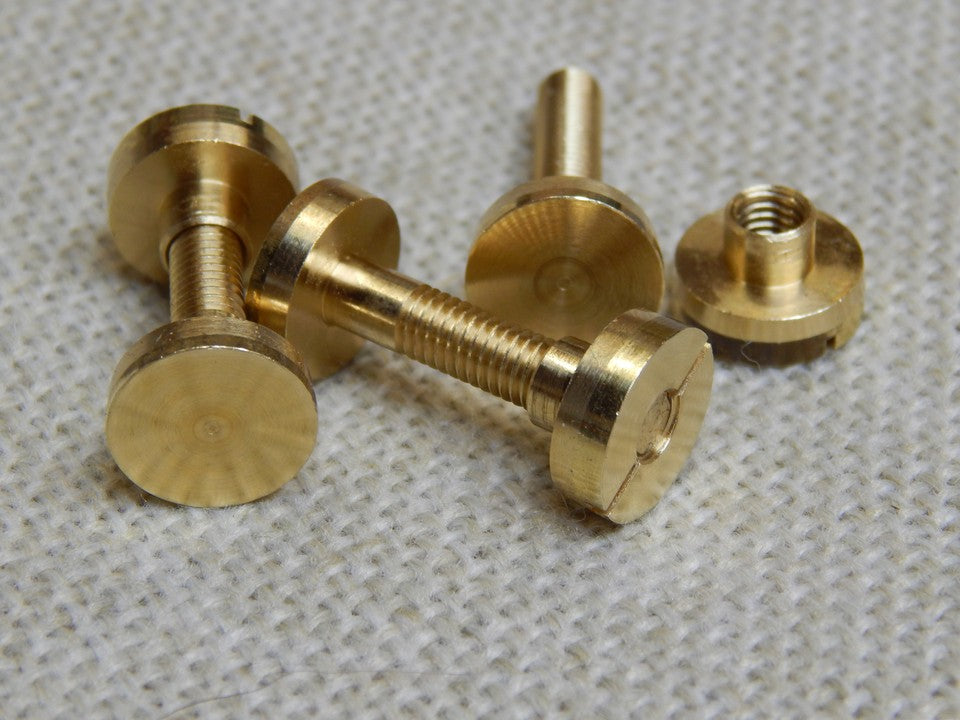

These custom-made brass saw fasteners have a slight chamfer on the head of the screw and on the split nut to ease insertion in a 1/2 inch pocket. The overall length is 1.025 inch to accommodate nearly any handle thickness. The screws can be trimmed or filed flush to the surface of the wood if desired.
Specifications:
- Head size: ½”
- Threaded Bolt size: 0.160”
- Hole size needed for bolt: 3/16”
- Bolt Length: 1.025
- Nut length: 5/16”
- Split nut groove width: 0.032”
- #10-32NF thread
Note: the price is for one fastener.
