Disston No 14 Duplex Saw -- Freshly Sharpened

Loon Lake Tool Works


Regular price $120.00
Disston No 14 Duplex Saw -- Freshly Sharpened
Disston No 14 Duplex Saw -- Freshly Sharpened
Disston No 14 Duplex Saw -- Freshly Sharpened
Disston No 14 Duplex Saw -- Freshly Sharpened
Disston No 14 Duplex Saw -- Freshly Sharpened

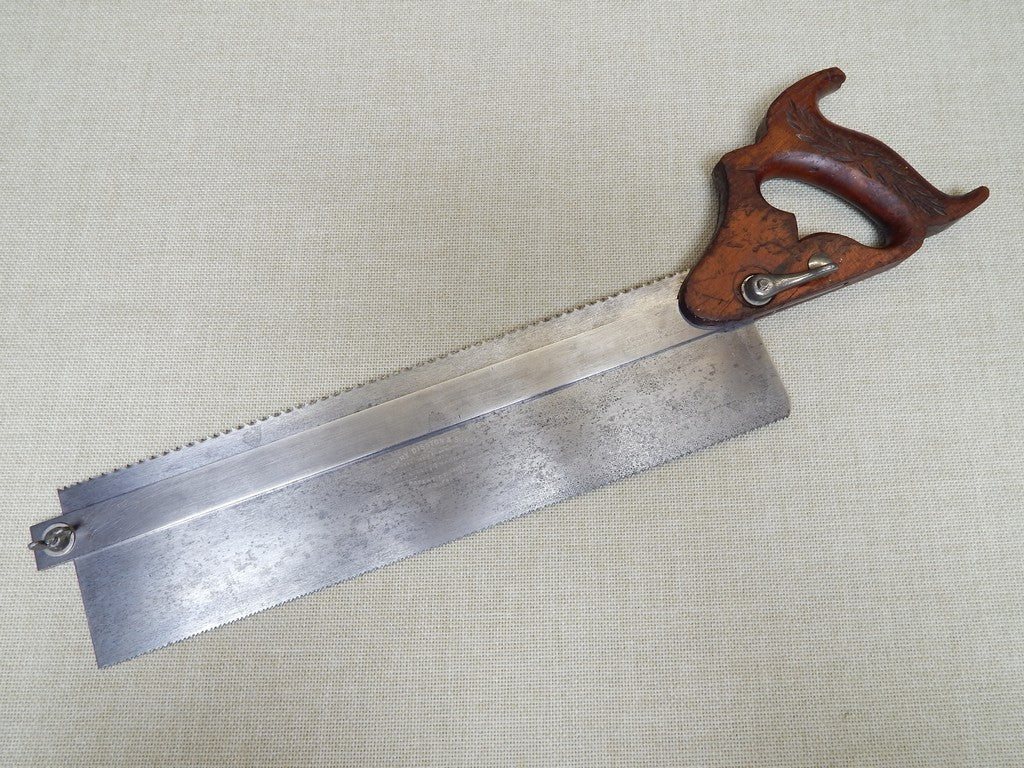

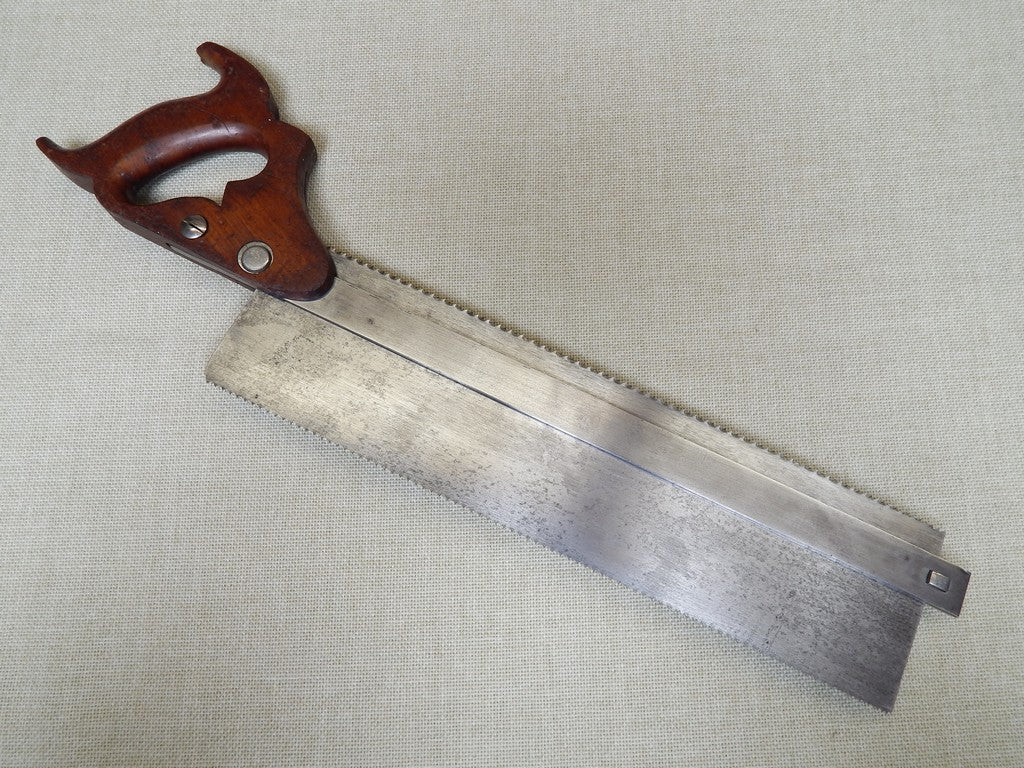

Following in the popularity of Bishop's patented duplex saw, Disston came up with their own design which was patented in 1914. Essentially two saws in one, it provided versatility without having to purchase two saws. One side has 12 ppi crosscut teeth, while the other side has 9 ppi rip teeth. The adjustable spine could serve as a depth stop.

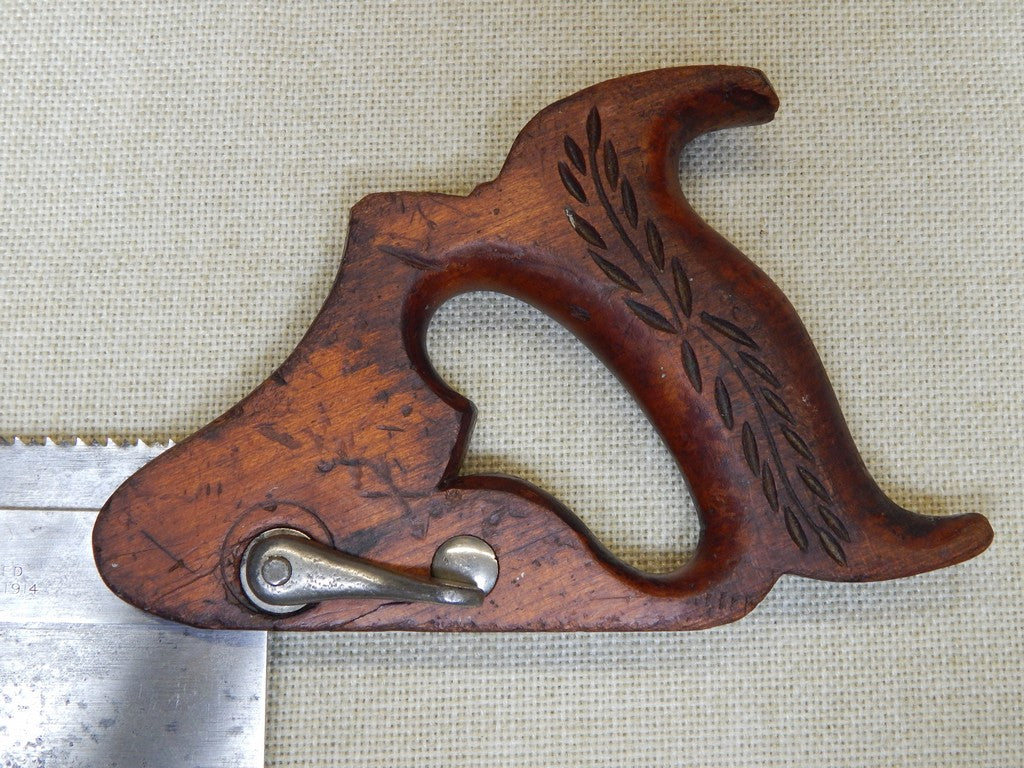

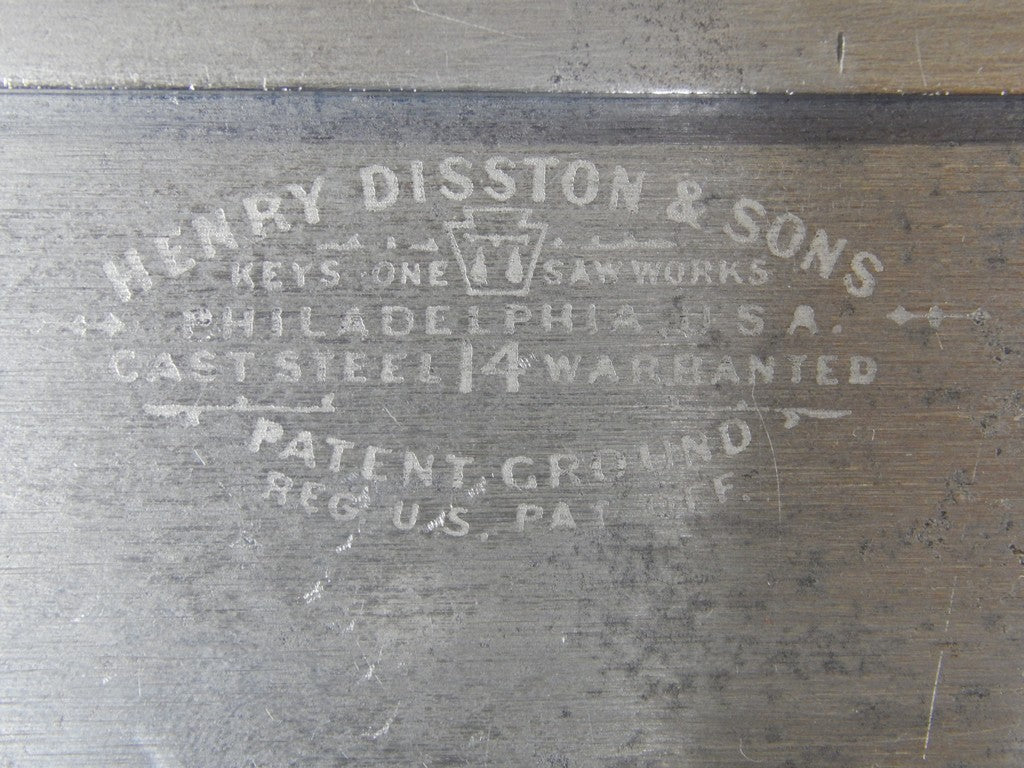

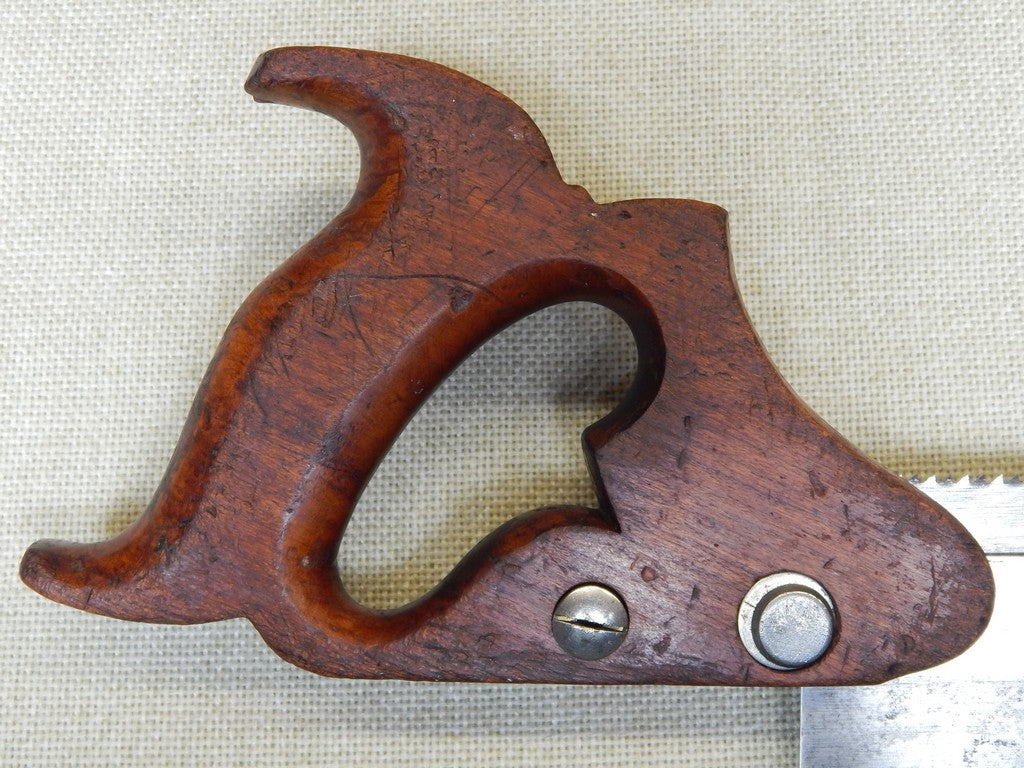

This example is clean, with a bold etch. The spine is marked with the patent date of January 27, 1914. The wheat-carved handle is in excellent condition.

The teeth are freshly sharpened:

Side 1 -

Tooth Type: rip
Rake Angle: 7º
Fleam Angle: 0º
Slope Angle: 0º
Tooth Set: 0.007"

Side 2 -

Tooth Type: crosscut
Rake Angle: 15º
Fleam Angle: 20º
Slope Angle: 0º
Tooth Set: 0.003"
